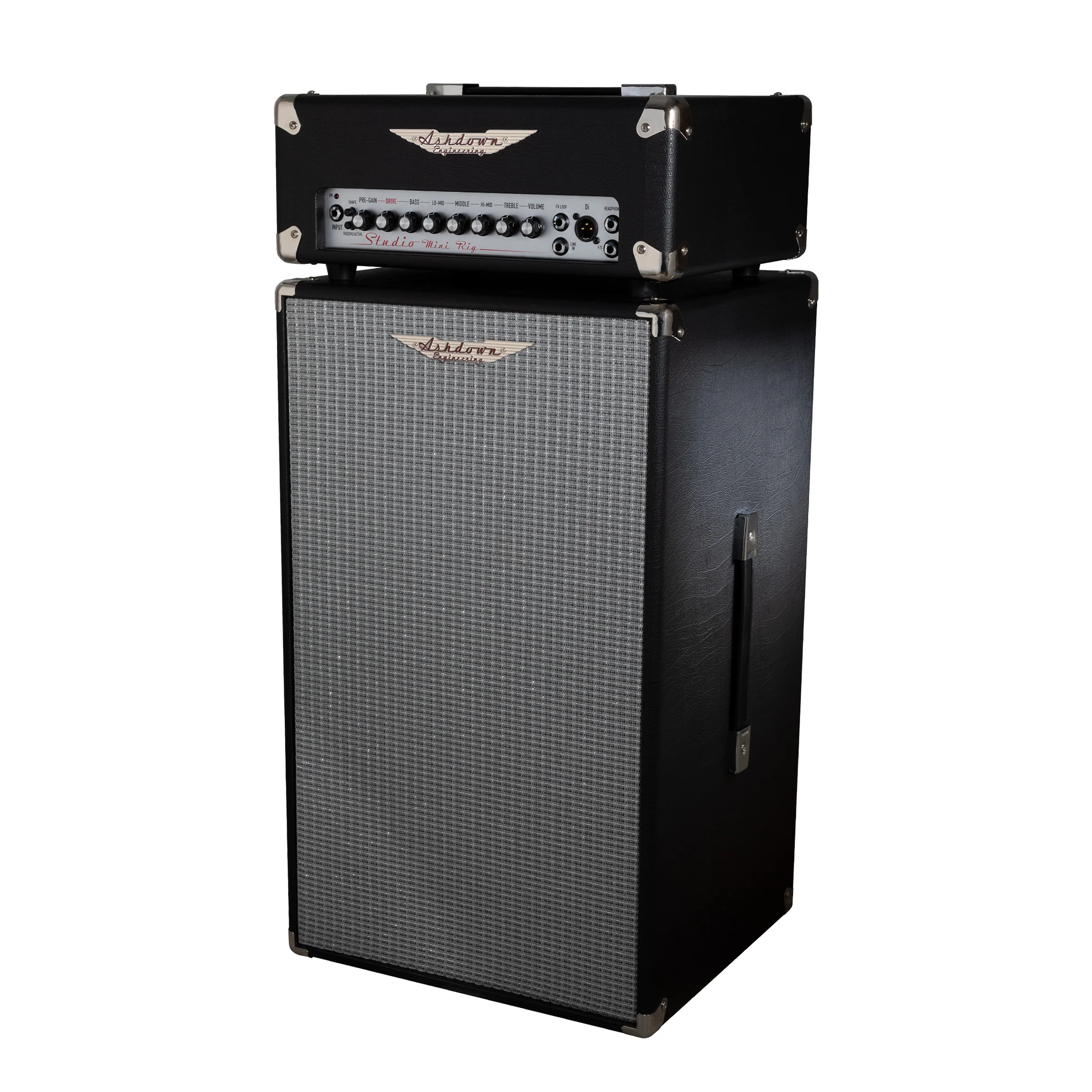

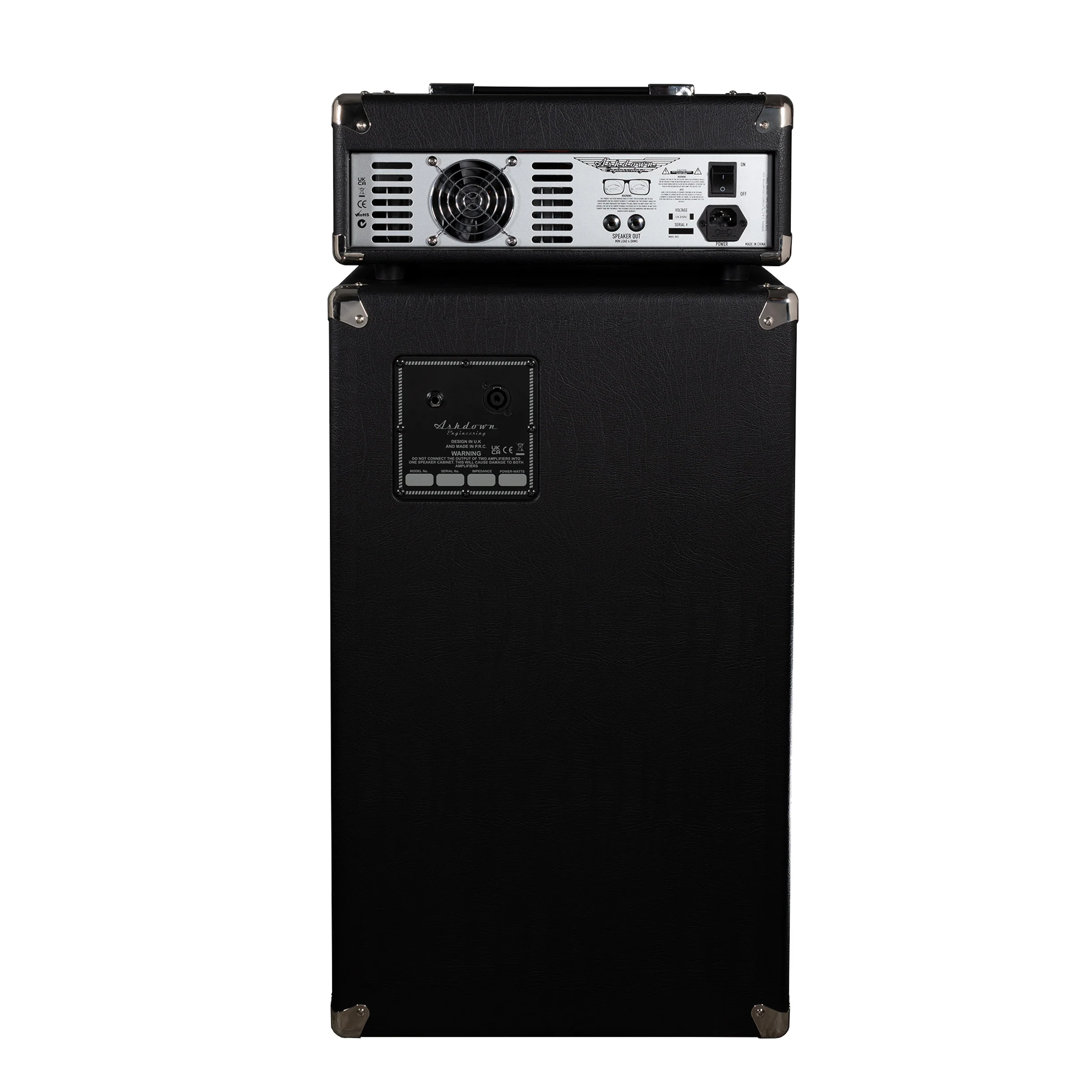

Studio Mini-Rig

Your browser does not support the video tag. SPECIFICATIONS Watts - 250 into 4 ohms min loadSpeaker Configuration - 2 x 10Controls - Pre Gain Drive, Bass, Hi Bass, Middle, Hi Middle, Treble, Volume, ShapeInputs - Instrument (with active Pad) - FX Loop (TRS Jack) Line InHeadphone Output - Suits most headphonesDI - Fully Balanced Output Head:H x W x D (mm) - 170 x 400 x 300Weight (kg) - 7.74Cabinet:H x W x D (mm) - 690 x 400 x 350Weight (kg) - 184 Ohms Feature fullThe Studio Mini-Rig takes its rich feature set from its 15” brother, 250 watts of premium Solid State Ashdown tone through custom 2 x 10" speakers. Potent yet portable the Studio Mini-Rig comes bursting with great features including foot switchable valve emulated overdrive, XLR DI, FX loop, headphone out for silent practice, 5 band EQ & Line Input. Simple yet powerfulGoing back to basics we leaned upon one of our tried and tested EQ sections by way of the 5 BAND EQ featured across our Rootmaster and OriginAL ranges, this EQ opens up everything you need to establish a great tone straight out of the box. With everything at 12 O’clock the NEW Ashdown Studio Mini-Rig sounds as you would expect, warm yet articulate. Solid state powerThis Mini-Rig might be small, but the 250watt solid state power section packs a punch through its 2 x 10” cab rated at 4 Ohm, tuned and paired to be perfectly loud enough for most gigs. Responsibly designedIn a world of class D, stand out with solid state! Repairable down to component level for the next 25 years, solid state has been overlooked in recent years for the wish for light weight affordable solutions such as the plethora of class D options in the market today. Class D serves a purpose but we as a manufacturer have a responsibility to ensure our products/parts don’t end up in landfill. Real honest power that will stand the test of time night after night… Responsibly designed is a statement we pride ourselves on. WANT TO HEAR MORE? Click the link to see more Studio videos! STUDIO RANGE MANUAL DOWNLOAD

Your browser does not support the video tag. SPECIFICATIONS Watts - 180 into 4 ohms min loadSpeaker Configuration - 2 x 10Controls - Pre Gain Drive, Bass, Hi Bass, Middle, Hi Middle, Treble, Volume, ShapeInputs - Instrument (with active Pad) - FX Loop (TRS Jack) Line InHeadphone Output - Suits most headphonesDI - Fully Balanced Output Head:H x W x D (mm) - 408 x 305 x 178Weight (kg) - 10.1Cabinet:H x W x D (mm) - 408 x 348 x 687Weight (kg) - 13.34 Ohms Feature fullThe Studio Mini-Rig takes its rich feature set from its 15” brother, 180 watts of premium Solid State Ashdown tone through custom 2 x 10" speakers. Potent yet portable the Studio Mini-Rig comes bursting with great features including foot switchable valve emulated overdrive, XLR DI, FX loop, headphone out for silent practice, 5 band EQ & Line Input. Simple yet powerfulGoing back to basics we leaned upon one of our tried and tested EQ sections by way of the 5 BAND EQ featured across our Rootmaster and OriginAL ranges, this EQ opens up everything you need to establish a great tone straight out of the box. With everything at 12 O’clock the NEW Ashdown Studio Mini-Rig sounds as you would expect, warm yet articulate. Solid state powerThis Mini-Rig might be small, but the 180 watt solid state power section packs a punch through its 2 x 10” cab rated at 4 Ohm, tuned and paired to be perfectly loud enough for most gigs. Responsibly designedIn a world of class D, stand out with solid state! Repairable down to component level for the next 25 years, solid state has been overlooked in recent years for the wish for light weight affordable solutions such as the plethora of class D options in the market today. Class D serves a purpose but we as a manufacturer have a responsibility to ensure our products/parts don’t end up in landfill. Real honest power that will stand the test of time night after night… Responsibly designed is a statement we pride ourselves on. WANT TO HEAR MORE? Click the link to see more Studio videos! STUDIO RANGE MANUAL DOWNLOAD
